What Are the Advantages of Excavators with Electro Magnet Chuck?

In the fast-paced worlds of scrap metal recycling, demolition, and heavy industrial salvage, time is money. Traditional material handling methods—using grapples, hooks, or manual chains—are not only slow but also inherently dangerous.

Enter the excavator with an electro magnet chuck. This powerful combination has transformed how operators handle ferrous materials, offering a synergy of speed, precision, and safety that mechanical attachments simply cannot match.

Below, we break down the core advantages of this technology and why it is becoming the industry standard for bulk metal recovery.

1. Unmatched Material Handling Efficiency

The primary driver for switching to an electromagnetic system is speed. Unlike a mechanical grapple that requires physical clamping and precise alignment, an electro magnet chuck engages with ferrous metals instantly via an electrical charge.

• Cycle Time Reduction: Operators can pick up, swing, and release scrap steel, beams, or cast iron in seconds.

• Versatile Grip: The magnetic field conforms to irregular shapes, allowing you to pick up a tangled mess of rebar or a single heavy plate without adjusting the attachment.

• Increased Throughput: For scrap yards, this translates directly to more tons processed per hour, significantly boosting daily revenue.

2. Superior Workplace Safety (Zero Ground Personnel)

Safety is a non-negotiable priority on any job site. Traditional lifting often requires "dogmen" or signalers to attach chains and slings, putting them in the "danger zone" beneath suspended loads.

• Remote Operation: With an electro magnet, the entire lifting and release process is controlled remotely from the safety of the cab.

• Instant Release: At the drop zone, the operator simply cuts the power, and the load drops instantly—no need for a worker to manually unhook straps.

• Emergency Drop Feature: In critical situations, the load can be jettisoned immediately, reducing the risk of tip-overs or structural failure.

3. Versatility Across Applications (Digging + Lifting)

One of the most significant commercial advantages is the machine's ability to "dual-purpose." You don't need to buy a dedicated crane and a dedicated excavator.

• Multi-Functionality: Many modern units retain their standard bucket capabilities. You can dig foundations in the morning and clean up scrap metal in the afternoon.

• Key Industries:

• Scrap Metal Recycling: Processing end-of-life vehicles (ELVs) and white goods.

• Demolition: Sorting rebar from concrete debris.

• Steel Mills: Feeding furnaces with raw scrap.

• Ship Breaking: Lifting large steel plates and beams.

4. Cost-Effectiveness and ROI

While the initial investment in a generator and magnet system requires capital, the return on investment (ROI) is rapid.

• Reduced Labor Costs: Eliminate the need for multiple ground crew members for rigging.

• Lower Maintenance: Fewer moving parts (no hydraulic cylinders for clamping) mean less wear and tear compared to grapple attachments.

• Fuel Efficiency: Modern power systems are designed to activate the magnet only when needed, reducing the load on the engine.

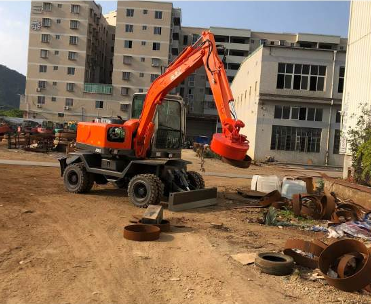

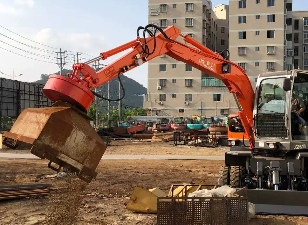

Case Study: The JG75S-9 Electro Magnet Wheeled Excavator

At Quanzhou Jinggong Machinery, we have engineered a solution that encapsulates all these advantages into a compact, mobile, and powerful package: The JG75S-9.

Designed specifically for the demands of urban demolition and medium-sized recycling operations, this machine bridges the gap between mini-excavators and heavy industrial equipment.

Key Technical Specifications

• Magnetic Performance: Equipped with an 800mm diameter electro magnet boasting a 500kg maximum suction capacity, it effortlessly handles heavy scrap iron and steel.

• Power System: Powered by a fuel-efficient 48KW Yuchai engine coupled with a dedicated 5KW generator—ensuring consistent magnetic force without draining primary hydraulic power.

• Mobility: Features a 25km/h travel speed, allowing for quick relocation between job sites without requiring a low-bed trailer.

• Terrain Handling: Weighing in at 7,000kg with a 58% climbing ability, it navigates uneven stockpiles and muddy sites with remarkable stability.

• Multipurpose Functionality: The JG75S-9 retains full excavator duty with a 0.2–0.3m³ bucket capacity and 45KN digging force, making it the ultimate workhorse for both metal recovery and general construction tasks.

Frequently Asked Questions (FAQs)

Q: Can an electro magnet pick up all types of metal?
A: No. Electro magnets only attract ferrous metals (iron, steel, and alloys containing iron). They will not pick up aluminum, copper, brass, or plastics.

Q: What happens if the excavator loses power while holding a load?
A: Safety is paramount. Machines like the JG75S-9 are designed with safety interlocks. However, the magnetic field relies on continuous current. In the event of a power failure, the load will drop. This is why it is crucial to never swing a load over personnel or unprotected areas.

Q: Is it better to have a wheeled or tracked excavator for scrap handling?
A: It depends on the site. Wheeled excavators (like the JG75S-9) are ideal for urban scrap yards and road construction sites due to their speed and rubber tires that don't damage pavement. Tracked excavators are better for soft, muddy terrain or stable, rough demolition sites.

Q: How much weight can a standard electro magnet excavator lift?
A: It varies by model. The lifting capacity depends on the magnet's diameter and generator output. For example, the JG75S-9 handles up to 500kg efficiently, which is ideal for the majority of scrap steel and rebar handling applications.

Conclusion: Is an Electro Magnet Excavator Right for You?

If your operations involve moving large volumes of scrap steel, demolition waste, or industrial salvage, upgrading to an excavator with an electro magnet chuck is a strategic move toward higher profitability and safer job sites.

The Quanzhou Jinggong Machinery JG75S-9 offers a comprehensive solution—combining the power of a dedicated magnet system with the agility of a wheeled excavator.

Ready to upgrade your material handling capabilities?
[Contact our sales team today] WhatsApp:+8618805957336  to get a customized quote or schedule a live demo of the JG75S-9.
